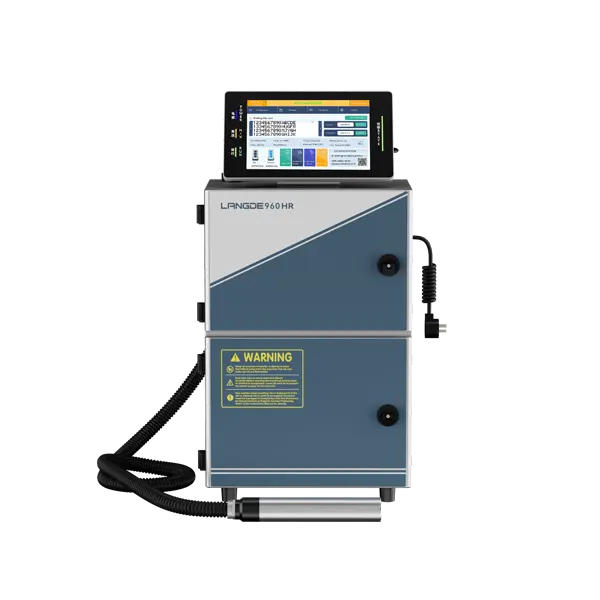

Equipped with a 128K high - frequency crystal oscillator, ideal for the fastest production lines and micro-sized characters, delivering exceptional printing quality.
Key Benefits：
Smaller printing height, minimum 1.2mm.
Faster printing speed, up to 510m/min.
Independent viscometer: Continuously monitors ink viscosity and temperature, auto - adjusts in a closed loop, unaffected by environmental changes or running time.
Nozzle anti - clogging：With a 4 - valve integrated printhead, independent cleaning pump, and a detachable design, it effectively prevents nozzle blockages.
Powerful function: Allows editing and switching of content during operation, supports printing of anti-counterfeiting codes, etc., has various synchronization and special printing functions, and can configure counter parameters.
Specification | Value |
Nozzle: | 40μm |
Crystal Frequency: | 128K |
Umbilical Length: | 3m (9.8 ft) optional 6m (19.6 ft) |
Supported consumables capacity: | 500ml/750ml/Continuous supply |
Temperature Range: | -10℃~ 45℃ |
Humility Range: | 10 ~ 95% non-condensing |
Environmental Protection: | IP55 |
32-bit embedded ARM structure, 8-core ARM processor
Internet remote assistance, monitoring, upgrade
System hardware and software intelligent self-check system
Printhead automatic cleaning
Ink line automatic detection
Screen fault diagnosis display
Machine status automatic display, intelligent alarm
Work log record
USB data information import
Wired, wireless WIFI, mobile phone hotspot Internet access
Printhead fully sealed integrated design (all-round printing)
10.1-inch color touch screen Color LED touch screen
Image graphic menu
Multi-level password protection
System language selection/with screen saver function
Automatic display of fault detection
Different types of information are displayed in different colors
What you see is what you get
Beacon (Alarm light) output; Relay output;
Photoelectric input x2; Encoder input
RS-232, RS-485
USB; WIFI; Ethernet
Reserved multi-channel control output
Simplified Chinese, Traditional Chinese, English, Portuguese, Spanish, Arabic, Bengali, Turkish, Czech, French, Korean, Russian, Vietnamese, Thai, Persian, Indonesian
Printing lines: 1-5 lines
Printing dot matrix: 5x5 5x7 7x9 6x12 8x16 12x16 11x24 16x32 (Self-edited dot information within 34 dots)
Printing speed: 8.5m/s (5 dots), 6.9m/s (7 dots), 5.4m/s (9 dots), 3.83m/s (12 dots), 2.33m/s (16 dots), 0.8m/s (24 dots)
Storage information: unlimited storage of printing information
Printing content: date, time, automatic date, automatic validity period, class number, batch number, serial number, four groups of counters, meter, self-edited pattern, variable barcode, anti-counterfeit code, multi-language, multiple fonts (support personal signature)
Printing length: N*1024 characters (customizable length)
Printing ink: black, yellow, green and other dye based inks
Printing character height: 0.8-10mm (adjustable)
Printing distance: 1~12mm (adjustable)
Font widening: 1~9 times, can be widened for a single character
Font direction: normal characters, reverse characters, inverted characters, reversed characters, can set the printing direction independently for a single character
Font spacing: 1~8 times, can be edited point by point
