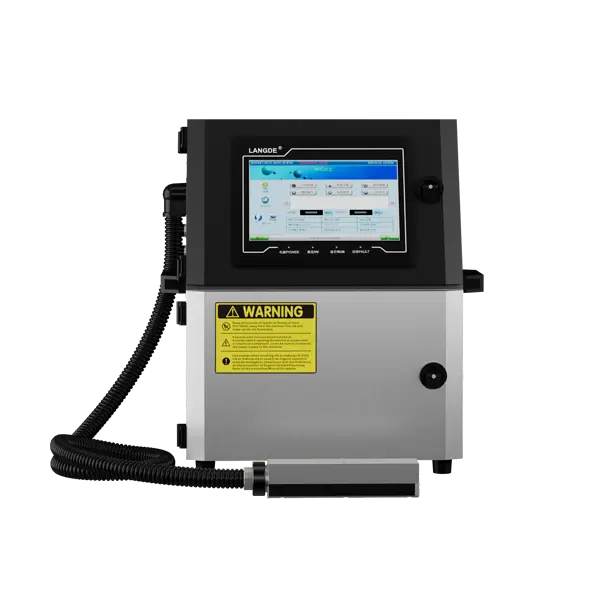

The LD820 uses an advanced four - pump integrated diaphragm design for ink, solvent, gutter, and circulation, ditching traditional gear pumps and compressed air.
Key Benefits:
Longevity: Its lifespan is multiple times that of gear pumps.
Bionic Efficiency: Based on bionics, it runs with near - zero wear and low maintenance costs.
Ink Protection: It spares ink from mechanical friction, extending ink life and cutting costs.
Low Consumption: With an optimized ink circuit, it consumes 10 - 20% of air - powered and 60 - 70% of gear - pump machines.
Specification | Value |
Nozzle: | Default 60μm |
Crystal Frequency: | 62.5K |
Umbilical Length: | 3m (9.8 ft) optional 6m (19.6 ft) |
Supported consumables capacity: | 500ml |
Temperature Range: | -10℃~ 45℃ |
Humility Range: | 10 ~ 95% non-condensing |
Environmental Protection: | IP55 |
32-bit embedded ARM structure, 4-core ARM processor
Internet remote assistance, monitoring, upgrade
System hardware and software intelligent self-check system
Printhead automatic cleaning
Ink line automatic detection
Screen fault diagnosis display
Machine status automatic display, intelligent alarm
Work log record
SD card / USB data information import
WIFI Internet access
Printhead fully sealed integrated design (all-round printing)
10.2-inch color touch screen
Image graphic menu
Multi-level password protection
System language selection/with screen saver function
Automatic display of fault detection
Different types of information are displayed in different colors
What you see is what you get
Beacon (Alarm light) output
Photoelectric input x2; Encoder input
RS-232
SD card; USB; WIFI; Ethernet
Reserved multi-channel control output
Chinese, English
Printing lines: 1-5 lines
Printing dot matrix: 5x5 5x7 7x9 6x12 8x16 12x16 11x24 16x32 (Self-edited dot information within 34 dots)
Printing speed: 4.5m/s (5 dots), 4.3m/s (7 dots), 3.3m/s (9 dots), 1.9m/s (12 dots), 1.8m/s (16 dots), 0.6m/s (24 dots)
Storage information: unlimited storage of printing information
Printing content: date, time, automatic date, automatic validity period, class number, batch number, serial number, four groups of counters, meter, self-edited pattern, variable barcode, anti-counterfeit code, multi-language, multiple fonts (support personal signature)
Printing length: N*1024 characters (customizable length)
Printing ink: black, yellow, green and other dye based inks
Printing character height: 1~15mm (adjustable)
Printing distance: 1~30mm (adjustable)
Font widening: 1~9 times, can be widened for a single character
Font direction: normal characters, reverse characters, inverted characters, reversed characters, can set the printing direction independently for a single character
Font spacing: 1~8 times, can be edited point by point
